Item NO.:
GY-23GS-1000LProduct Orgin:
ChinaShipping Port:
XiamenPayment:
T/TModel Number:
GY-23GS-1000L or customizeMinimum Order Quantity:
1Voltage:
220/240/380 Volt 50/60 HzPower:
2.5kw-5kwWarranty:
1 Year
● Provide a touch screen and PLC control system,also can be the indicators testing record function;
● External or internal LED light source controlled lighting time light intensity, change the light color;
● Cooperate with cleaning device, through the pump drive cleaning ball to the glass wall and tube;
● Optional constant temperature system,configuration refrigeration equipment, hot and cold temperature range 20-40 ℃ can be set up;
● Equipped with low shear force algae water pump, is not easy to damage the algae;
● With frequency conversion control system,the flow can be adjusted;
● Have good reliable leak prevention and removable structure;
● Can according to customer's different farming algae bioreactor design different tube light structure.
4. Environmental remediation: Removing carbon dioxide or other harmful substances from the atmosphere through photosynthesis.

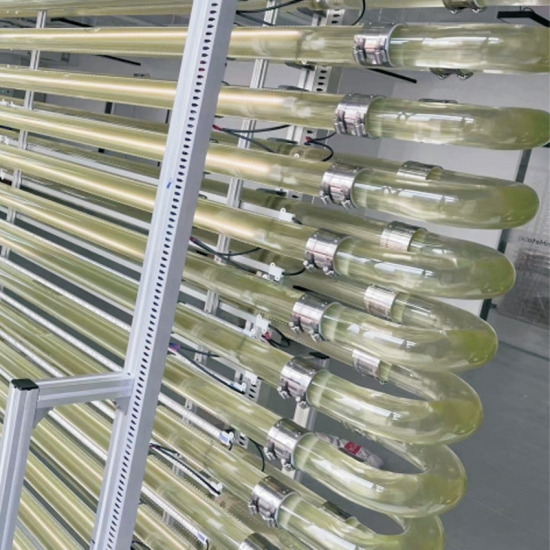

◆ Container body：tube outside diameter of 60 or 85 mm，Structure of aluminum alloy bracket and PVC pipe clamp.
◆ Material: High borosilicate glass tube, PE tank
◆ External dimensions: L9 * W1.5 * H2.3 (m)
◆ Total capacity： 1000L
◆ LED light source: full spectrum light source, DC24V, 0-13000 (lux)
◆ Air pump: voltage AC220V, gas flow rate 100L/min(mandatory)
◆ Water pump: voltage 380V, 2.2kw, water flow 5T-10T/h
◆ Detection accuracy: Temperature ± 0.3 ℃,pH±0.03
◆ Measurement range: PH (1-14)
◆ Voltage: 380V, 2.5kw-5kw (reference)
◆ Optional: PLC control, touch screen, and other sensor modules.
