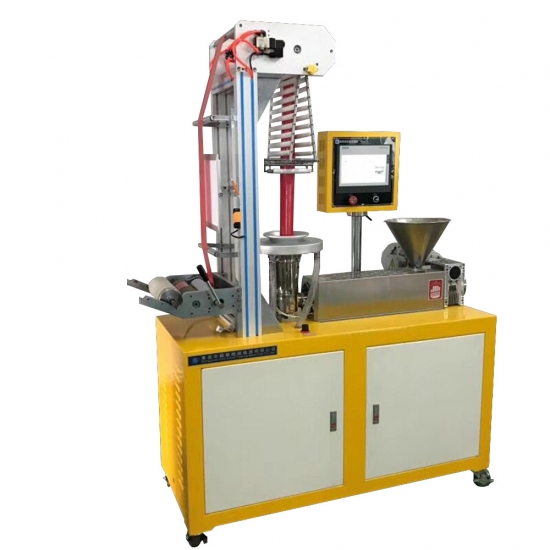

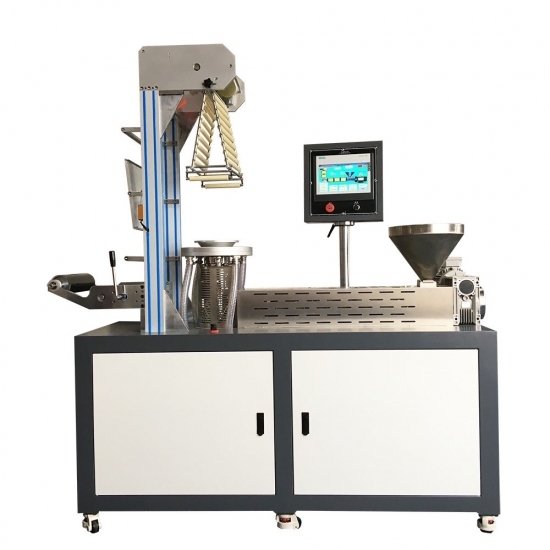

Blown Film Machine Line
Home
/Lab Plastic Equipment
/Blown Film Machine Line
/
High quality 1.5L scale lab spray dryer equipment
Lab scale spray dryer is suitable for the production of in universities, research institutes and food and pharmaceutical chemical enterprises.
In laboratories, medical, pharmaceutical and food industries, every step of sterilization is related to quality and safety. As the core equipment for
In many professional fields such as material aging testing, photocatalytic experiments, and environmental weathering research, there are extremely hig
In the pharmaceutical, biological research, food processing and medical industries, sterilization is not only related to product quality, but also dir
Working principle The high-intensity physical force generated by high-speed vibration and beating is used to beat the sample, so that the cells or tis
Lead Time:
1-3 daysModel Number:
OLT-430Minimum Order Quantity:
1Voltage:
3∮, AC380VWarranty:
1 yearThe casting unit is a new type of equipment developed by our company, mainly composed of a small casting machine. The casting machine is a mechanical equipment for the molding of rubber and plastic material cast film products. It is mainly used in the fields of casting film product molding, casting material formulation development, and casting material performance research, such as conveying materials to flow The casting machine is made of cast film products. Its advantage is light and practical. During use, the rotation speed of the casting roller and the traction roller can be controlled by the frequency conversion motor, so that the conveying speed of the material can be adjusted to produce various sheet products that meet the requirements of users. This machine is mainly composed of main drive motor, transmission device, extrusion device, feeding hopper, electric control system, casting die, two-roll calendering and so on. Its working principle is: the material flows from the hopper into the plasticizing and extruding through the extruding device into a casting state, and then comes out from the host through the die, and is calendered by a two-roll calender.
Technical Parameters
|
Model |
OLT-430(Single layer) |
OLT-430-2(Double coextrusion) | OLT-430-3(Three ayer co-extrusion) |
|
Screw diameter |
￠25 |
￠25 |
￠25 |
|
L/D |
1:33 |
1:30 |
1:30 |
|
Die diameter |
￠25 |
￠40 |
￠40 |
|
Main motor power |
2.2 |
2.3*2 | 2.3*3 |
|
Traction roller size |
80*L250 |
85*300 | 85*300 |
|
Blowing width |
100-180 |
100-220 | 100-220 |
|
Volume (W×D×H) |
1800*800*2100 |
26060*880*2100 | 2600*1000*2100 |
|
Power Supply |
3∮, AC380V |
3∮, AC380V |
3∮, AC380V |
