Lead Time:
1-3 daysModel Number:
OLT-430Minimum Order Quantity:
1Voltage:
3∮, AC380VWarranty:

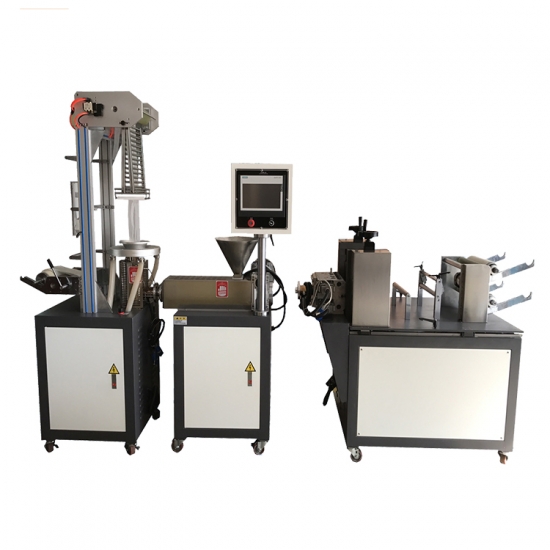

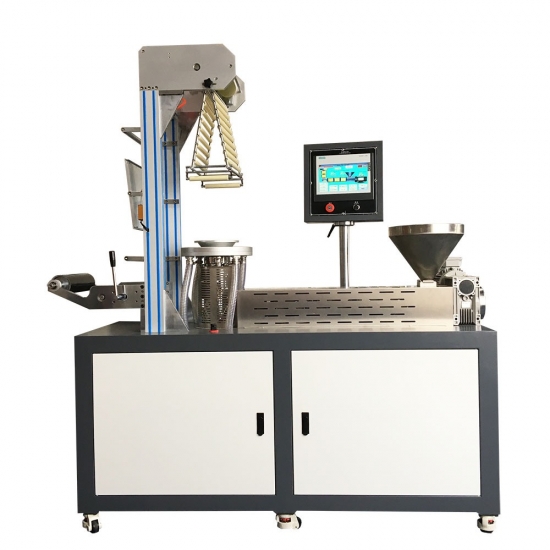

1 yearThe casting unit is a new type of equipment developed by our company, mainly composed of a small casting machine. The casting machine is a mechanical equipment for the molding of rubber and plastic material cast film products. It is mainly used in the fields of casting film product molding, casting material formulation development, and casting material performance research, such as conveying materials to flow The casting machine is made of cast film products. Its advantage is light and practical. During use, the rotation speed of the casting roller and the traction roller can be controlled by the frequency conversion motor, so that the conveying speed of the material can be adjusted to produce various sheet products that meet the requirements of users. This machine is mainly composed of main drive motor, transmission device, extrusion device, feeding hopper, electric control system, casting die, two-roll calendering and so on. Its working principle is: the material flows from the hopper into the plasticizing and extruding through the extruding device into a casting state, and then comes out from the host through the die, and is calendered by a two-roll calender.
Technical Parameters
|
Model |
OLT-430(Single layer) |
OLT-430-2(Double coextrusion) | OLT-430-3(Three ayer co-extrusion) |
|
Screw diameter |
￠25 |
￠25 |
￠25 |
|
L/D |
1:33 |
1:30 |
1:30 |
|
Die diameter |
￠25 |
￠40 |
￠40 |
|
Main motor power |
2.2 |
2.3*2 | 2.3*3 |
|
Traction roller size |
80*L250 |
85*300 | 85*300 |
|
Blowing width |
100-180 |
100-220 | 100-220 |
|
Volume (W×D×H) |
1800*800*2100 |
26060*880*2100 | 2600*1000*2100 |
|
Power Supply |
3∮, AC380V |
3∮, AC380V |
3∮, AC380V |
