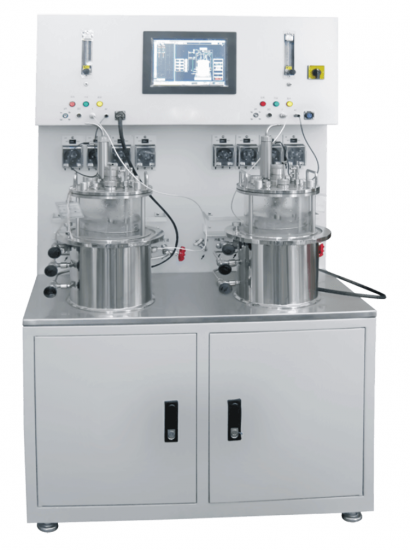

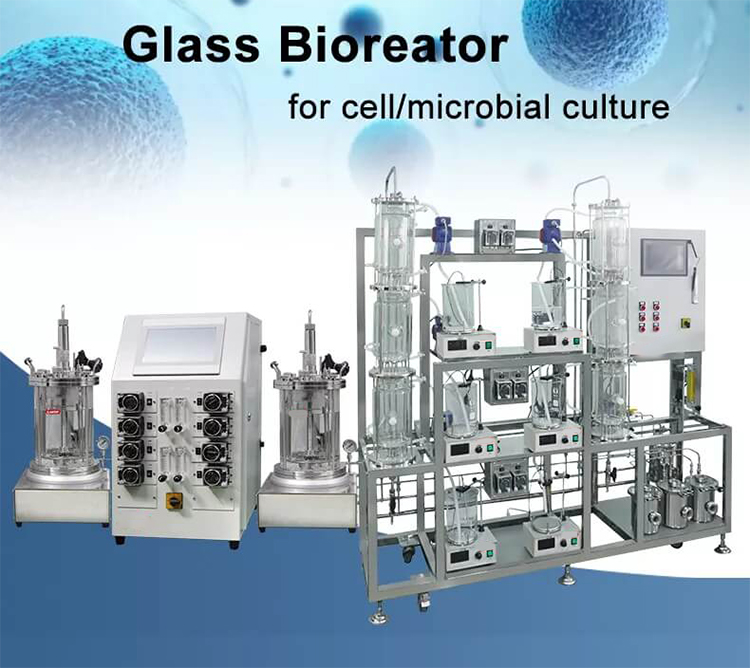

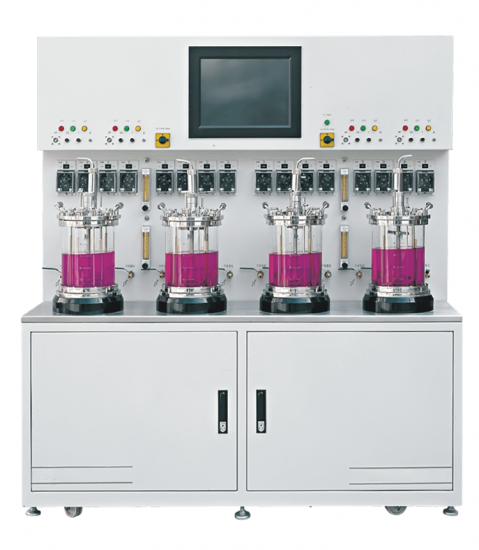

Laboratory glass fermenter bioreactor for cell culture
Product Description

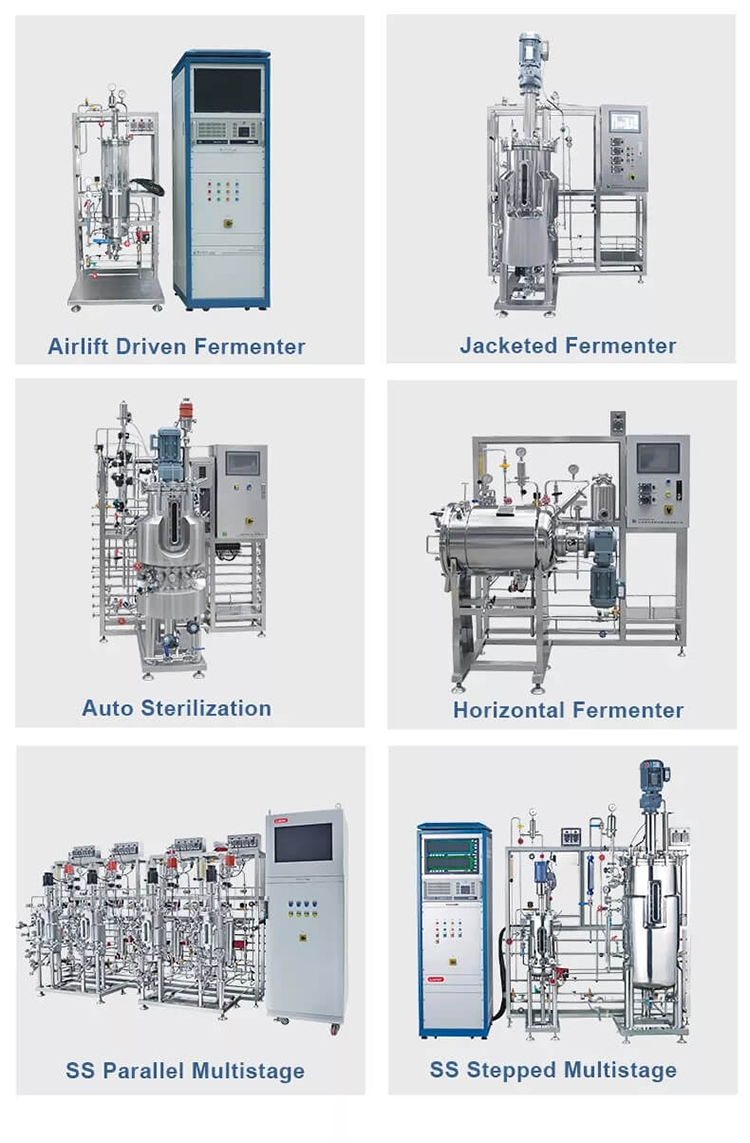

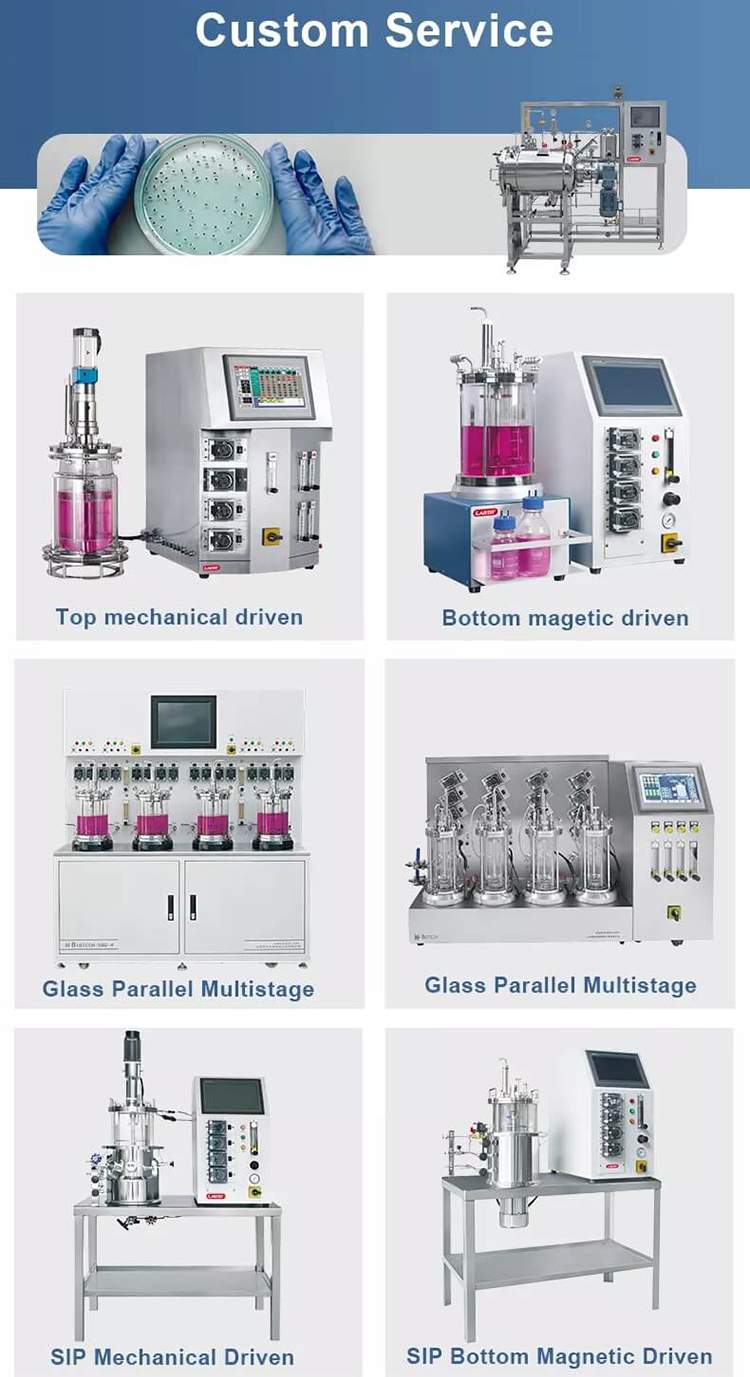

OLLITAL offers you not only with scalable range of glass and stainless steel bioreactors, but also with multi-parallel and multistep bioreactors. Based on our thorough understanding of bioreactors, rich experience for scaling up benchtop fermentors to processing system, and excellent control system for temperature, rpm, PH, DO, antifoam, feeding, aeration and pressure, you will benefit from our turnkey solution service.
Technical Data

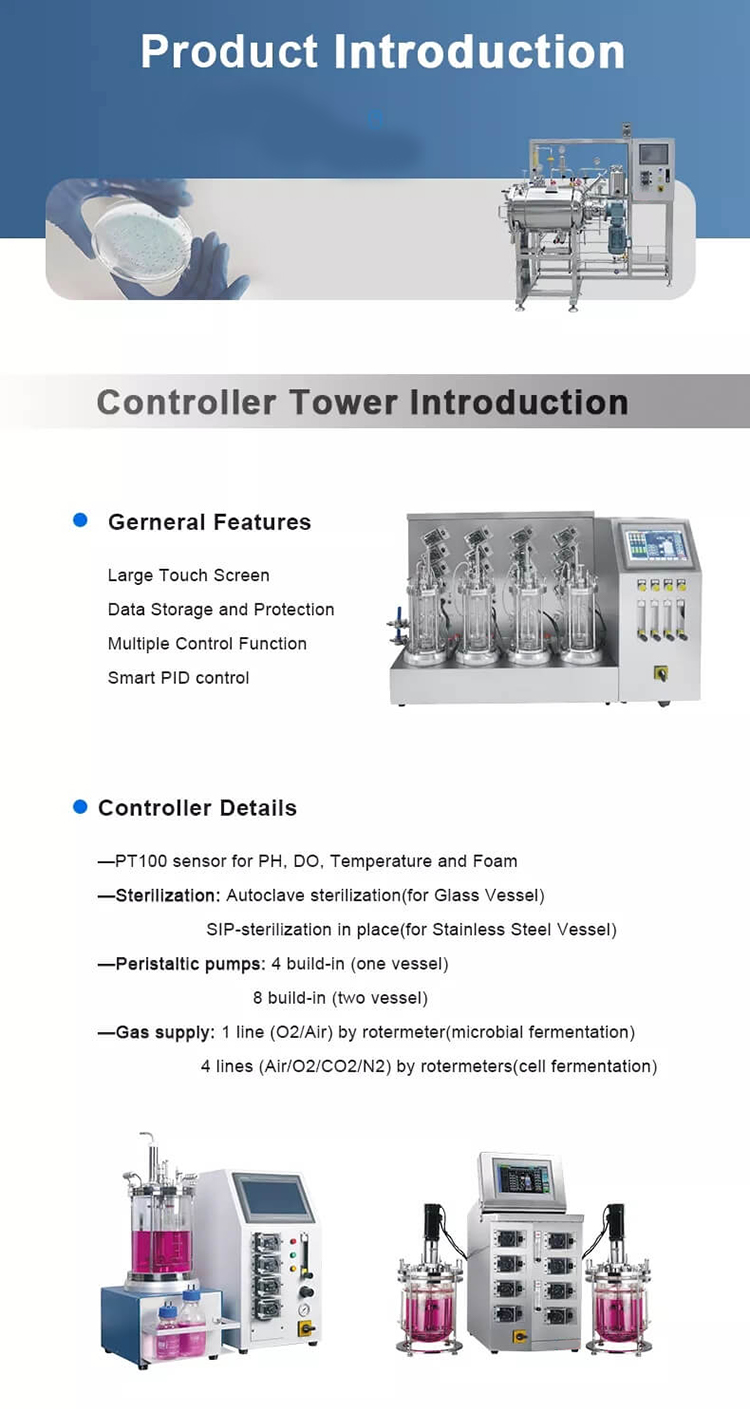

Controller Technical Data
Control Unit
BR100-M1
BR100-M2
BR100-C1
BR100-C2
BR500-M1
BR500-M2
BR500-C1
BR500-C2

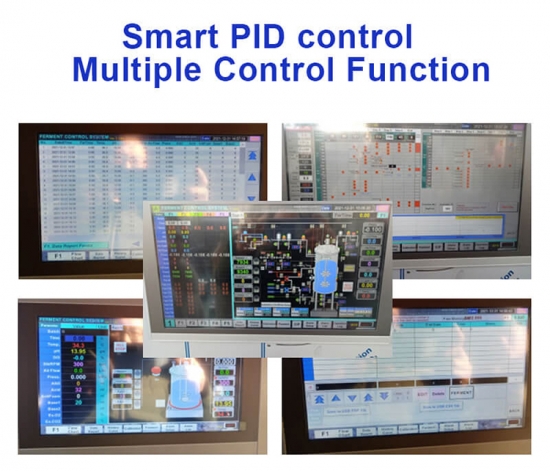

Digital controller, colored touch screen
●
Temperature, DO, agitation speed
●
Adding acid/alkali/CO2 to control PH
●
Rotameter
●
Low noise stirring motor
●
Peristaltic pump
4pcs
8pcs
4pcs
8pcs
4pcs
8pcs
4pcs
8pcs
Adjusting PH (acid/alkali), deform, feeding

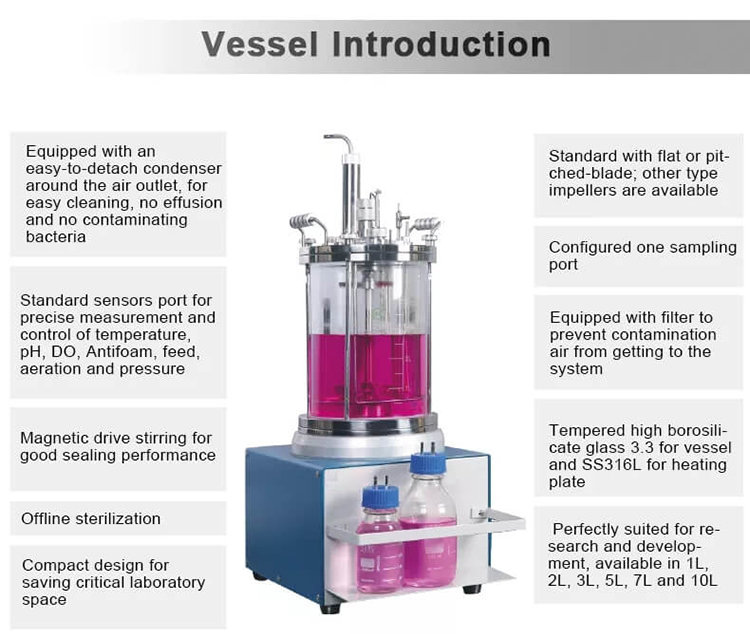

Glass Vessel Technical Data
Culture Vessel
1L
2L
3L
5L
7L
10L
H:D ratio
≈1:2
Total volume
1.1L
2.7L
3.5L
5.8L
7.9L
11.2L
Working volume
0.8L
2.0L
2.6L
4.4L
6.0L
8.4L
Minimal working volume
0.3L
0.7L
0.9L
1.5L
2.0L
2.8L
Agitation speed range
5~1000rpm
Motorpower
0.18Kw
0.4Kw
0.4Kw
0.4Kw
0.4Kw
0.75Kw
Impeller to vessel diameter ratio
1:02
Surface treatment
Inner vessel Ra ≤ 0.4 um，Outer surface Ra＜0.6 um
Material | Pressure
SUS316L, Borosilicat glass| | 0.10Mpa（Max 0.15Mpa）
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
