Product Orgin:
ChinaModel Number:
OLT-100-C2Minimum Order Quantity:

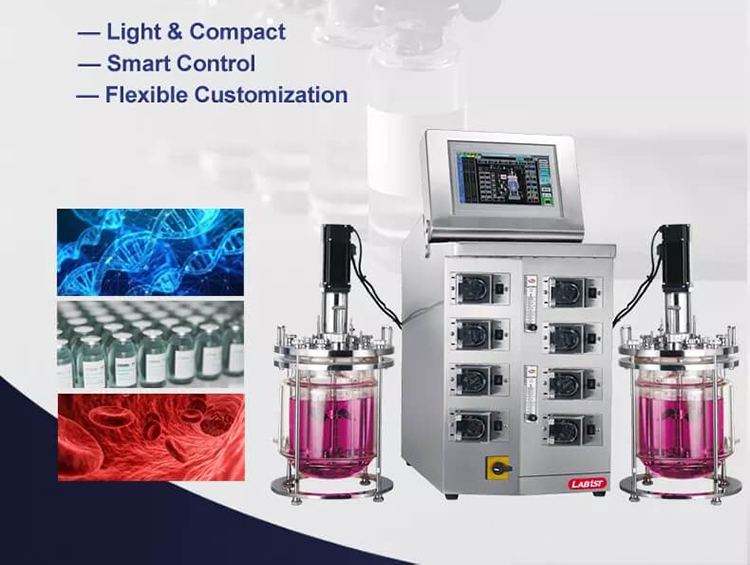

1Laboratory Fermenter Bioreactor
Product Description
OLLITAL offers you not only with scalable range of glass and stainless steel bioreactors, but also with multi-parallel and multistep bioreactors. Based on our thorough understanding of bioreactors, rich experience for scaling up benchtop fermentors to processing system, and excellent control system for temperature, rpm, PH, DO, antifoam, feeding, aeration and pressure, you will benefit from our turnkey solution service.
|
Control Unit
|
OLT100-C2
|
|
Digital controller, colored touch screen
|
●
|
|
Control Capabilities
|
|
|
Temperature, DO, agitation speed
|
●
|
|
Adding acid/alkali/CO2 to control PH
|
●
|
|
Rotameter
|
●
|
|
Low noise stirring motor
|
●
|
|
Peristaltic pump
|
8pcs
|
|
For PH (acid/alkali), deform, feeding
|
|
|
Process Data Recording
|
|
|
Temperature control
|
Process sequence control
|
|
Electric heating sleeve with bottom water to control heating / cooling
|
|
|
PH control
|
Range: 2~12（±0.01)，display: 0~14（±0.01), PID，auto control，autoweighing，system calibration
|
|
DO control
|
Range: 0~150%，±3%，International eletrode and shielded wire detection
|
|
Defoam control
|
Defoaming electrode, mechanical compression defoaming blade
|
|
Automatic foam detection, peristaltic pump automatically add defoamer in proportion to time
|
|
|
Agitation control
|
Servo motor, PID control, stepless speed regulation
|
|
Gas supply control
|
1 line（Air/O2），Rotamater
|
|
Culture Vessel
|
|
|
PH electrode, cable
|
●
|
|
DO electrode, cable
|
●
|
|
Temperature sensor Pt 100
|
●
|
|
Foam electrode, cable
|
●
|
|
Options
|
|
|
Gas mixing options（Air、O2、CO2、N2）
|
○
|
|
Cleanliness detection
|
○
|
|
Online live cell detection
|
○
|
|
Automatic vessel pressure control
|
○
|
|
Top Aeration
|
○
|
|
TMFC (Thermal Mass Flow Controller)
|
○
|
|
CO2 detection
|
○
|
|
Redox
|
○
|
|
Exhaust detection analysis
|
○
|
|
Liquid Level
|
○
|
|
Filling weighing system
|
○
|
|
Methanol and ethanol content online detection
|
○
|
|
Additional feed pump
|
○
|
|
Variable speed pump
|
○
|
|
Upper controller
|
○
|
|
Control Tower
|
|
|
Controlling
|
Industrial PC
|
|
Display | Operation
|
Touch Panel 10“| Touch screen
|
|
Communication
|
RS485
|
|
Housing Material
|
SUS304
|
|
External Connection
|
|
|
USB
|
1pcs，Data export
|
|
Balance connection
|
2 * RS485
|
|
Sensor type
|
PT100
|
Vessel Technical Data
Culture Vessel
1L
2L
3L
5L
7L
10L
H:D ratio
≈1:2
Total volume
1.1L
2.7L
3.5L
5.8L
7.9L
11.2L
Working volume
0.8L
2.0L
2.6L
4.4L
6.0L
8.4L
Minimal working volume
0.3L
0.7L
0.9L
1.5L
2.0L
2.8L
Agitation speed range
5~1000rpm
Motorpower
0.18Kw
0.4Kw
0.4Kw
0.4Kw
0.4Kw
0.75Kw
Impeller to vessel diameter ratio
1:2
Surface treatment
Inner vessel Ra ≤ 0.4 um，Outer surface Ra＜0.6 um
Material | Pressure
SUS316L, Borosilicat glass| | 0.10Mpa（Max 0.15Mpa）
Vessel Configuration
Low noise stirring motor
●
Autoclavable sterilization | Sterilization in place
● | ○
Magnetic drive | mechanical drive
● | ○
Storage bottle [2pcs]
●
Exhaust condenser [water cooling]
●
Customizable blade
○
Custom port
○
Electrical heating | Jacketed heating
● | ○
Cumstom Service
