Stainless Steel Fermenter Bioreactor
Product Description
OLLITAL offers you not only with scalable range of glass and stainless steel bioreactors, but also with multi-parallel and multistep bioreactors. Based on our thorough understanding of bioreactors, rich experience for scaling up benchtop fermentors to processing system, and excellent control system for temperature, rpm, PH, DO, antifoam, feeding, aeration and pressure, you will benefit from our turnkey solution service.
Controller Technical Data
ontrol Unit
OLT-500-M2
Digital controller, colored touch screen
●
Control Ability
Temperature, DO, agitation speed
●
Adding acid/alkali/CO2 to control PH
●
Rotameter
●
Low noise stirring motor
●
Peristaltic pump
8pcs
Adjusting PH (acid/alkali), deform, feeding
Process Data Recording
Temperature control
Process sequence control，closed loop system
Recirculating pump and heat exchanger for cooling/heating
PH control
Range: 2~12（±0.01)，display: 0~14（±0.01), PID，auto control，autoweighing，system calibration
DO control
Range: 0~150%，±3%，International eletrode and shielded wire detection
Defoam control
Defoaming electrode, mechanical compression defoaming blade
Automatic foam detection, peristaltic pump automatically add defoamer in proportion to time
Agitation control
Servo motor, PID control, stepless speed regulation
Gas supply control
1 lines（Air/O2)，Rotameter
Culture Vessel
PH electrode, cable
●
DO electrode, cable
●
Temperature sensor Pt 100
●
Foam electrode, cable
●
Options
Gas mixing options（Air、O2、CO2、N2）
○
Cleanliness detection
○
Online live cell detection
○
Automatic vessel pressure control
○
Top Aeration
○
TMFC (Thermal Mass Flow Controller)
○
CO2 detection
○
Redox
○
Exhaust detection analysis
○
Liquid Level
○
Filling weighing system
○
Methanol and ethanol content online detection
○
Additional feed pump
○
Variable speed pump
○
Upper controller
○

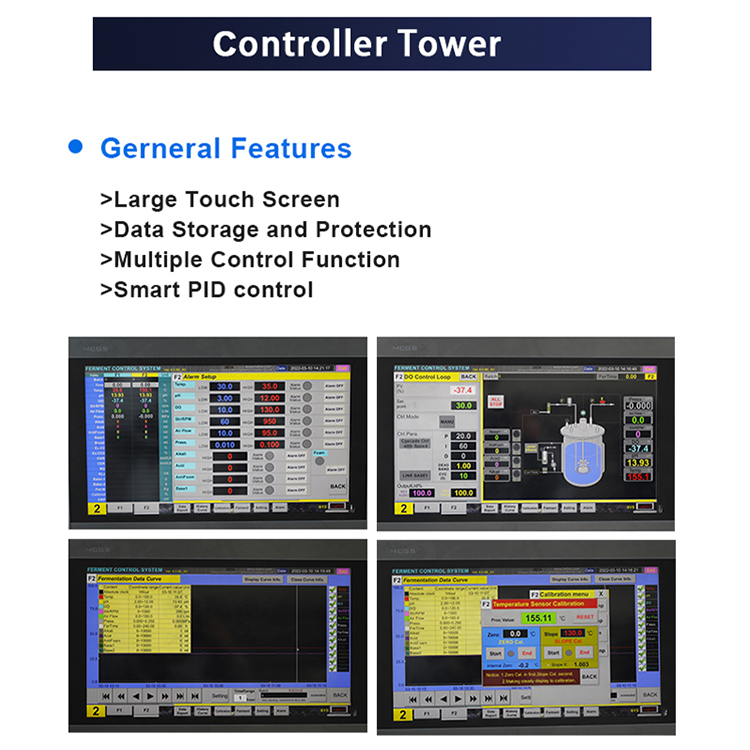

Control Tower
Controlling
Industrial PC
Display | Operation
Touch Panel 10“| Touch screen
Communication
RS485
Housing Material
SUS304
External Connection
USB
1pcs，Data export
Balance connection
2* RS485
Sensor type
PT100

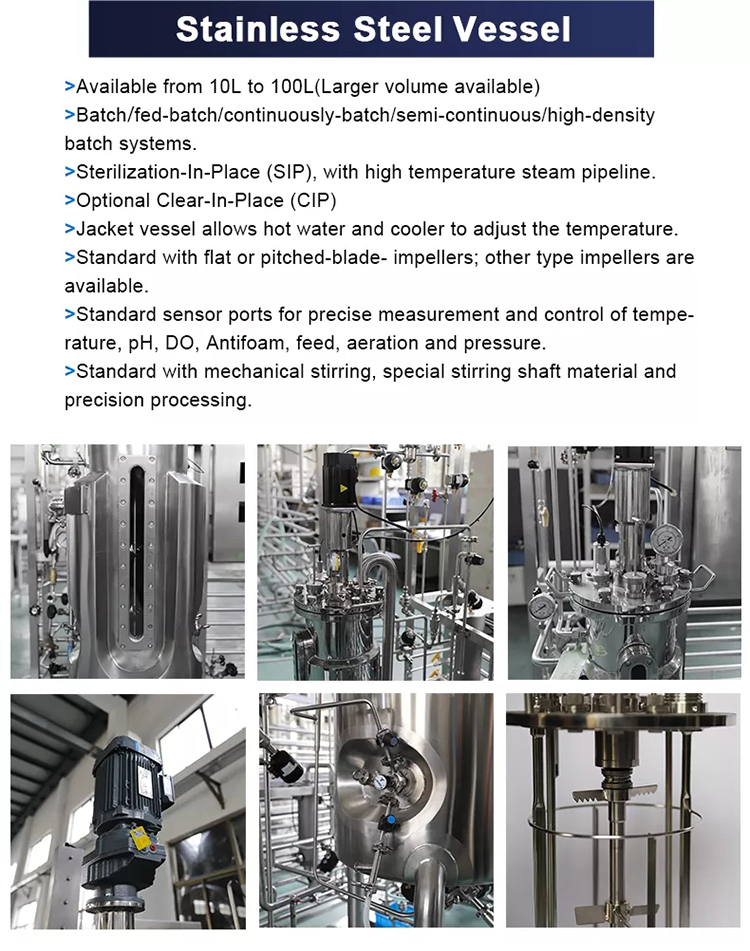

Stainless Steel Vessel Technical Data
Culture Vessel
10L
15L
20L
30L
50L
100L
H:D ratio
1:2.2~2.8
Total volume
13
18
27
34
58
132
Working volume
9.8L
13.5L
20.3L
25.5L
43.5L
99L
Minimal working volume
3.3L
4.5L
6.8L
8.5L
14.5L
33L
Agitation speed range
5~1000rpm
5~800rpm
5~700rpm
Motorpower
0.75Kw
1Kw
1Kw
1Kw
0.75Kw
1.5Kw
Impeller to vessel diameter ratio
≈1:2.2~2.8

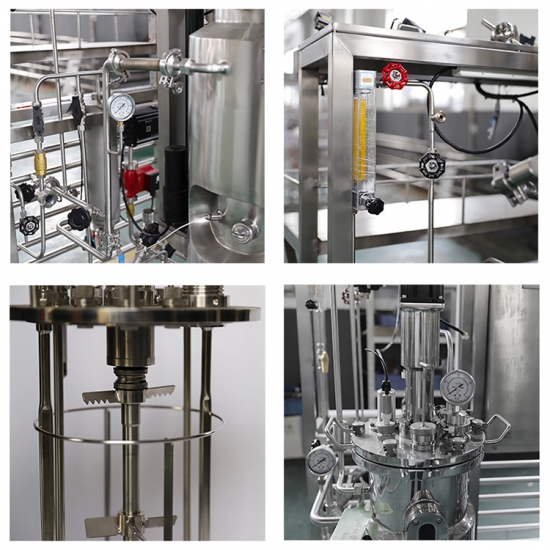

Vessel Configuration
Low noise stirring motor
●
Sterilization in place
●
Mechanical drive | Magnetic drive
● | ○
Storage bottle [2pcs]
●
Customizable blade
○
Vessel passivation
○
Custom port
○
Cover lifting
○

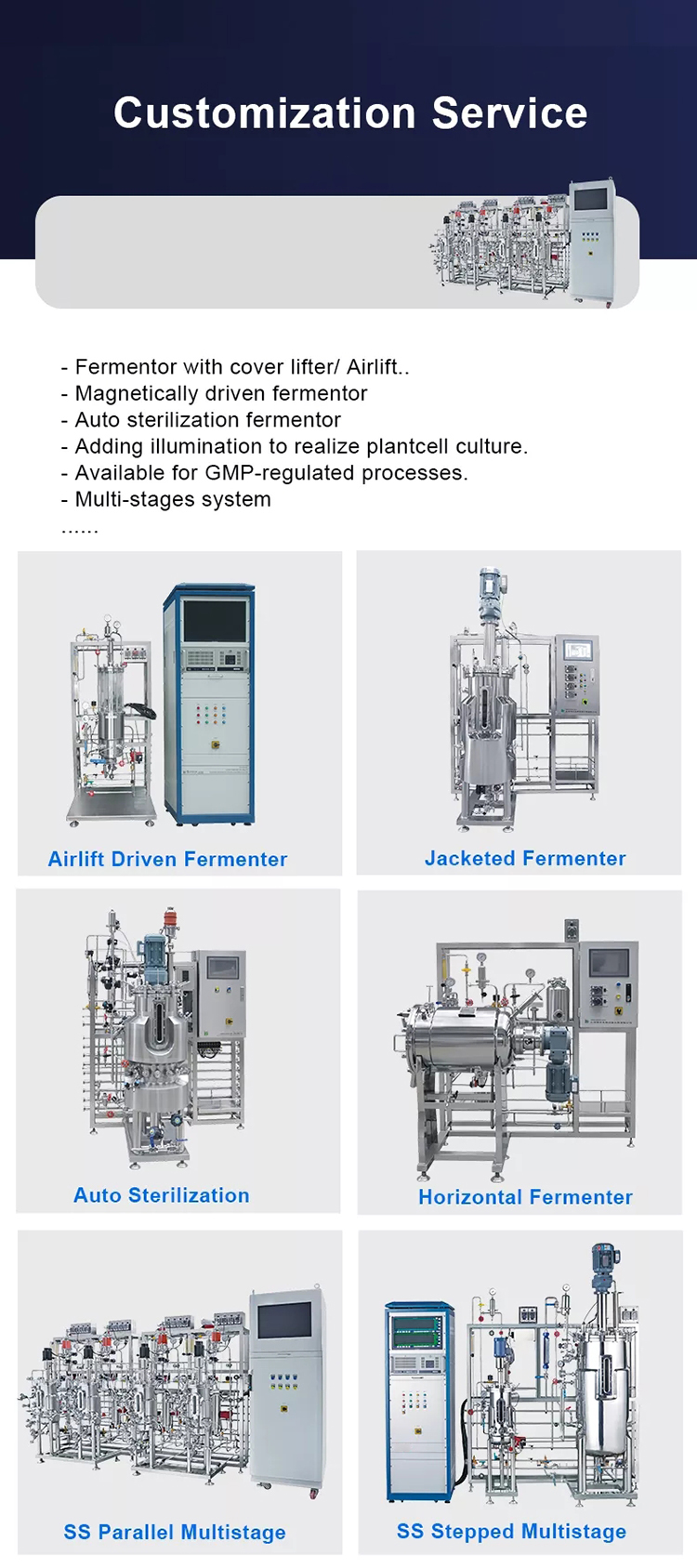

Cumstom Service
