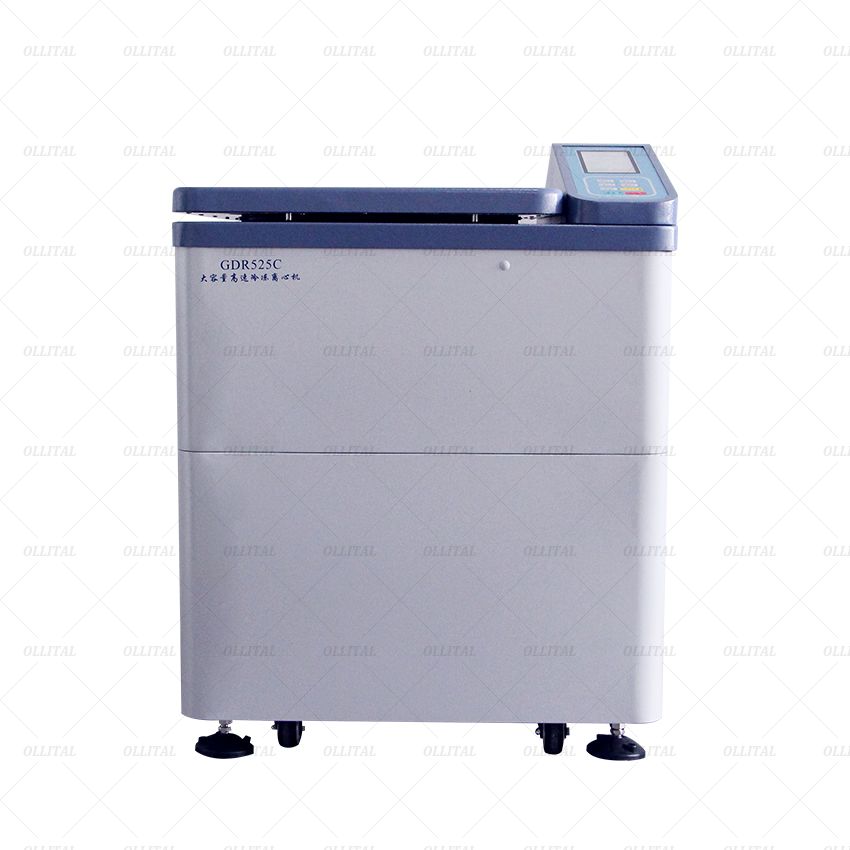

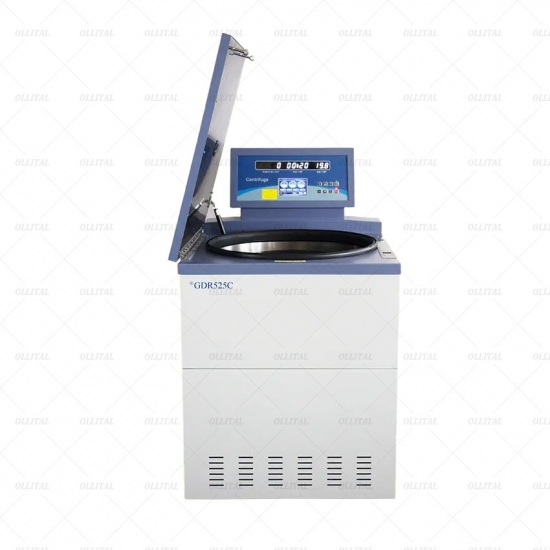

Item NO.:
OLT-GDR525CProduct Orgin:
ChinaShipping Port:
XiamenVoltage:
AC 220±22V 50Hz 35APower:
4500WWeight:
252kg
Industrial centrifuge: used for large-scale material separation, such as food processing, chemical industry and other fields.
Product Features：
Intelligent control system
◆High compatibility with multiple rotors.
◆ RCF and speed separately and switching free,automatically calculate RCF.
◆ Up to 99 program groups and parameters can be revised during operation without stopping.
◆ The electric door lock can choose whether to open the chamber door automatically after the centrifugal operation
Excellent kernel performance
◆ HD large LCD display and the parameters can be revised during operation without shutdown.
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ 10 gears acceleration /deceleration with linear drive.
◆ Two modes can be set: start timing/arrival revolution timing.
◆ Energy-efficient ECO friendly refrigeration system with special thermal insulation inside the machine .
Careful and safe
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system.
Technical Parameter：
Rotor parameters：
|
Rotor Name |
Rotor NO. |
NO. |
Capacity |
Max Speed（r/min) |
Max RCF(×g) |
|
Angle rotor |
1 |
1 |
24×1.5/2.0ml(titanium alloy) |
25000rpm |
64800×g |
|
2 |
2 |
18×10ml |
23000rpm |
60460×g |
|
|
3 |
3 |
8×50ml Round bottom/（titanium alloy） |
21000rpm |
52356×g |
|
|
4 |
4 |
8×50ml(round bottom) |
20000rpm |
46420×g |
|
|
5 |
5 |
6×50ml(Conical bottom) |
20000rpm |
46420×g |
|
|
6 |
6 |
6×250ml |
14000rpm |
30074×g |
|
|
7 |
7 |
8×100ml |
13000rpm |
19830×g |
|
|
8 |
8 |
6×500ml |
10000rpm |
17700×g |
|
|
9 |
9 |
4×1000ml |
8000rpm |
12040×g |
