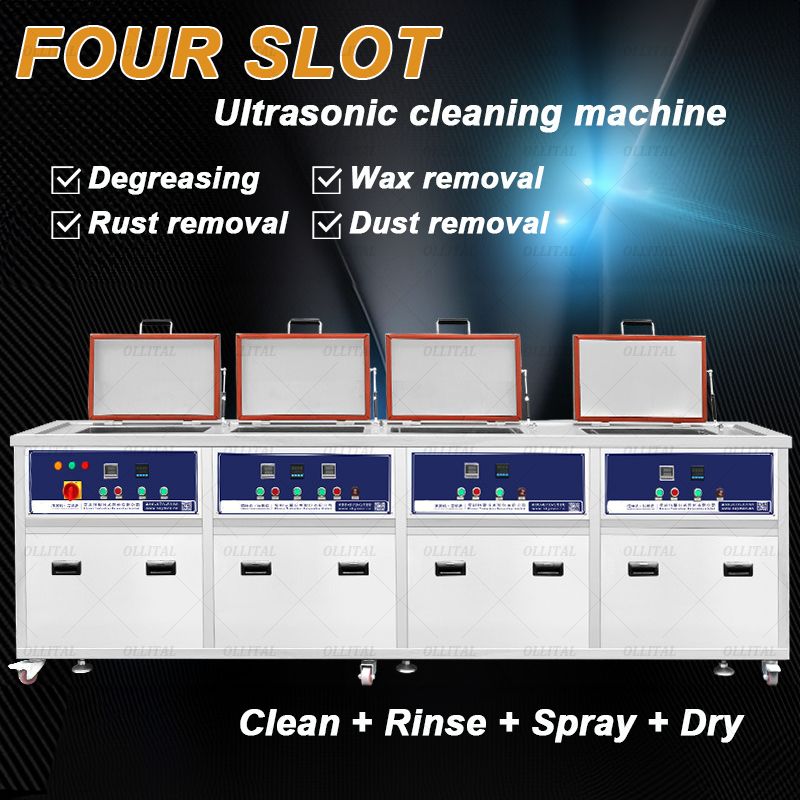

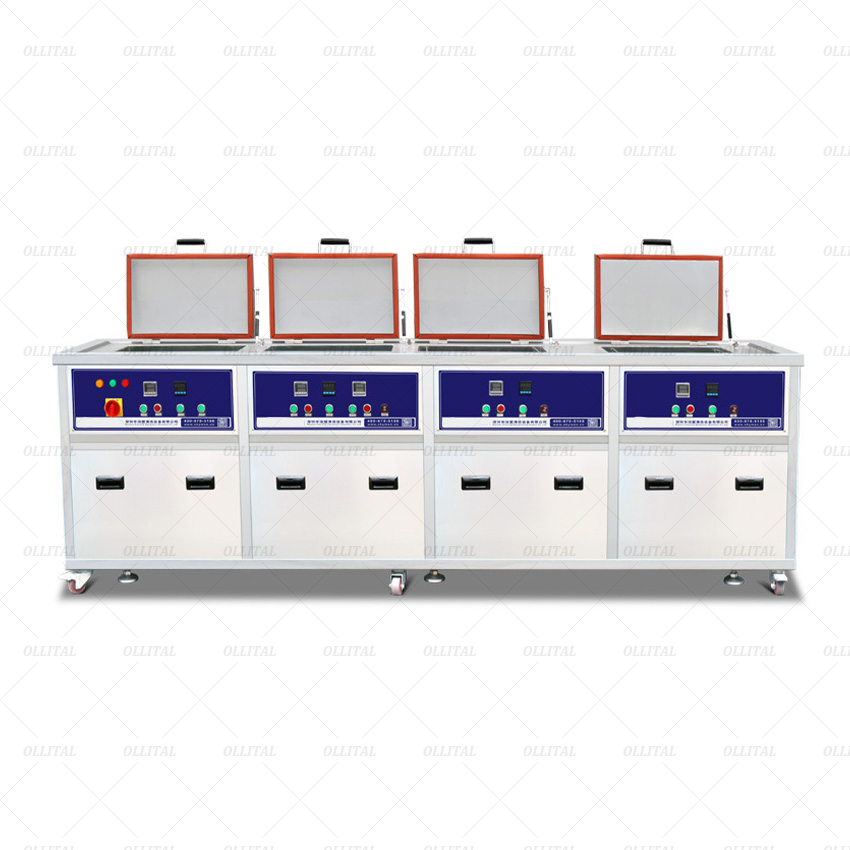

Four-Tank Multi-Function Industrial Digital Ultrasonic Parts Cleaning Machine

The four-station ultrasonic cleaning machine is a highly efficient integrated cleaning

  • Item NO.:

    OLT-JM-4024GH

  • Lead Time:

    7-15 day

  • Product Orgin:

    China

  • Shipping Port:

    Xiamen

  • Voltage:

    220V or Customize

  • Power:

    0-1500W adjustable

  • Dimension(L*W*H):

    1450*950*850

  • Weight:

    190KG
Product Details

The four-station ultrasonic cleaning machine is an efficient integrated cleaning equipment that combines the four steps of ultrasonic cleaning, rinsing, spraying and drying. It is suitable for applications with extremely high cleanliness requirements and quick drying, and can handle complex precision parts, electronic components, medical devices, etc. The four-station design of this equipment not only improves the cleaning effect, but also ensures that there is no residual liquid or stains on the surface of the object.


1. Working principle

  • Ultrasonic cleaning tank: The first station uses the ultrasonic cavitation effect to generate tiny bubbles in the liquid through high-frequency vibration. When the bubbles burst, they release a strong impact force to remove oil, dust and other dirt on the surface of the object.
  • Rinse tank: The second station is used for rinsing, and pure water or deionized water is often used to further remove residual cleaning liquid to ensure that there are no contaminants on the surface of the object.
  • Spray tank: The third station rinses the object through a high-pressure spray system, and uses a strong water flow to further remove the residues that have not been cleaned on the surface of the object, and removes the tiny particles left during the rinsing process.
  • Drying tank: The fourth station uses hot air or infrared heating to quickly dry the objects to ensure that there is no residual moisture or water stains on the objects after cleaning.

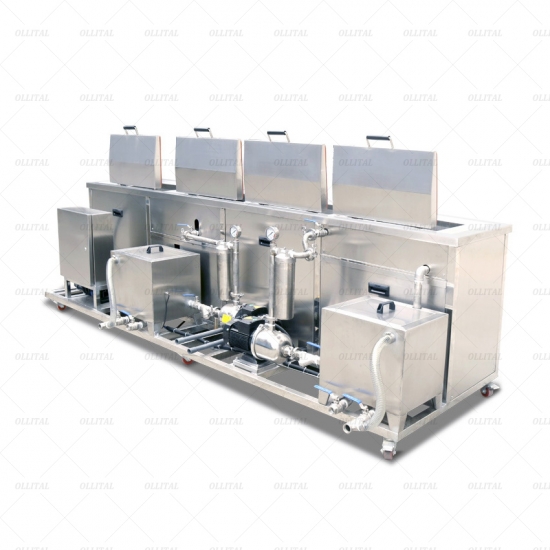

2. Equipment composition

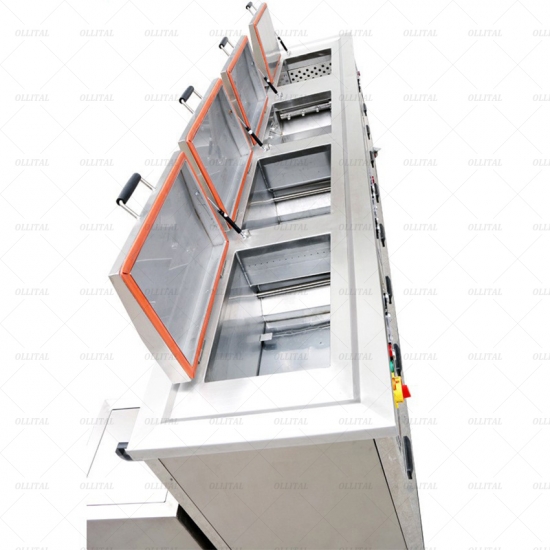

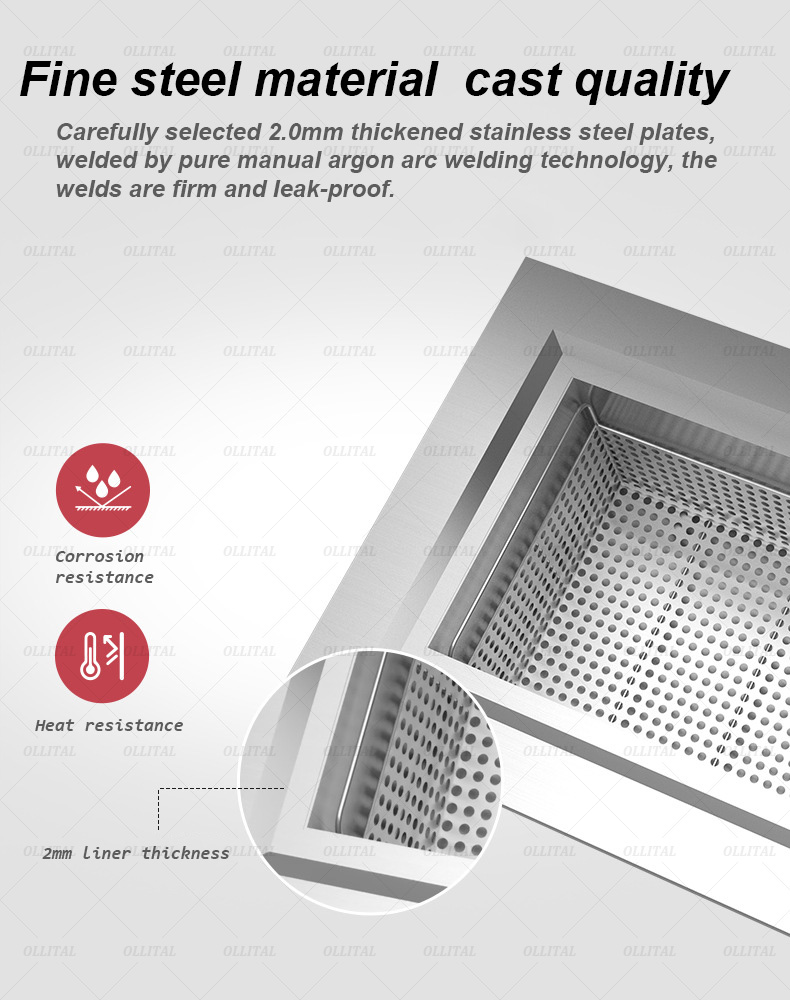

  • Cleaning tank: Ultrasonic cleaning equipment, equipped with ultrasonic transducers and heating systems to ensure that the temperature of the cleaning liquid and the ultrasonic frequency can adapt to the cleaning needs of different types of objects.
  • Rinsing tank: Use pure water or deionized water, equipped with a water circulation system to ensure the cleanliness of the rinsing water, which helps to completely remove the residual cleaning liquid.
  • Spray tank: Use high-pressure nozzles to rinse the objects, and the water flow pressure can be adjusted to ensure the cleanliness of the objects in the details.
  • Drying tank: Use hot air circulation or infrared heating technology to quickly evaporate water and prevent water stains from remaining, which is particularly suitable for the drying of precision parts.
  • Control system: Used to adjust the operating parameters of each station, including cleaning time, ultrasonic frequency, spray pressure, rinsing and drying temperature, etc.

3. Four-station cleaning process

  • Cleaning stage: The object is first placed in the ultrasonic cleaning tank to remove dirt and grease on the surface through cavitation effect. The ultrasonic frequency and cleaning time can be adjusted according to the type of object.
  • Rinsing stage: The cleaned object is moved to the rinsing tank, and pure water or deionized water is used to further remove the residual cleaning liquid to avoid residual chemicals on the surface.
  • Spraying stage: The object is sprayed with high-pressure water to wash away any residual dirt or particles in the rinsing water to ensure that there is no residue on the surface of the object.
  • Drying stage: The object is moved to the drying tank and quickly dried by hot air or infrared heating to ensure that there is no moisture residue on the surface of the object and achieve a clean and dry state.
4. Application areas
  • Electronic industry: Suitable for cleaning and drying complex electronic components, printed circuit boards (PCBs), etc., to ensure that there is no residual liquid in the components after cleaning to avoid affecting electrical performance.
  • Medical industry: Used for cleaning and drying medical devices to ensure sterile cleaning, especially for the treatment of surgical instruments and high-precision medical equipment.

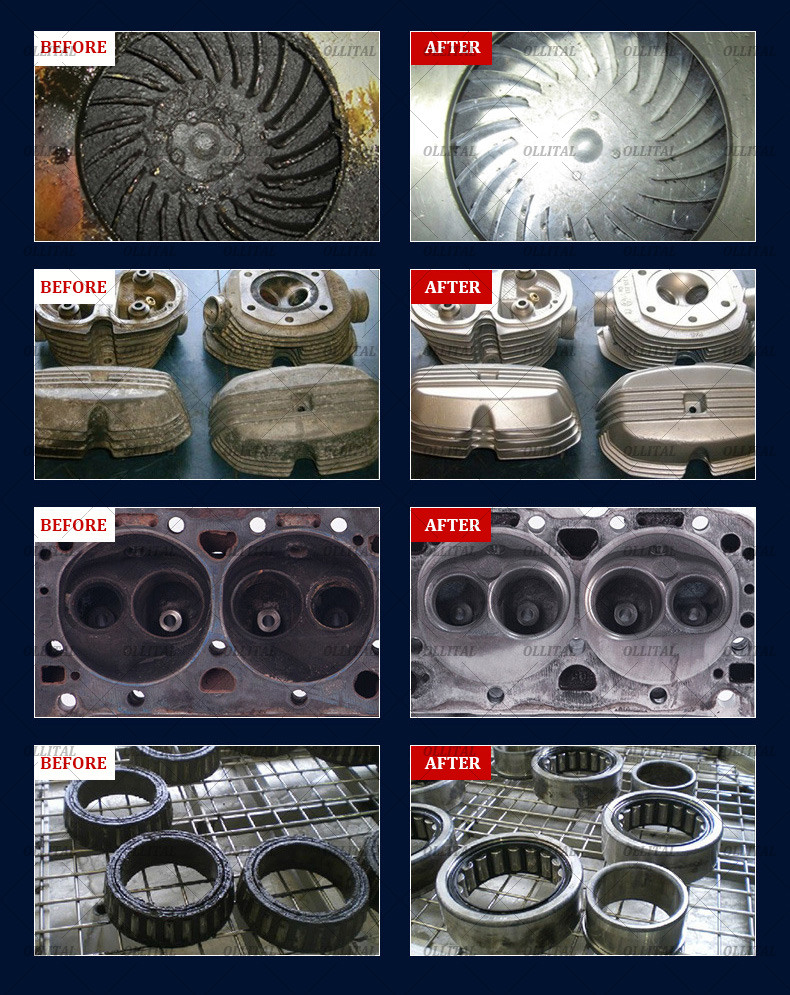

  • Auto parts industry: Suitable for cleaning and drying auto engine parts, brake system components, etc., requiring products with high cleanliness and no water stains.
  • Optical industry: Used for cleaning and drying optical lenses, camera lenses, etc., with high requirements for cleaning, and it is necessary to avoid water stains after cleaning that affect optical performance.

Model Frequency(KHz) Capacity Inner groove size mm Number of vibrators Heating power Ultrasonic power Drying and heating Time control Temperature control Filter cycle
OLT-JM-4024GH 28/40 optional 38L 500*300*250 12 1500W 0-600W 3000W 1-99H adjustable 20-95°ºC Standard configuration
OLT-JM-4036GH 28/40 optional 53L 500*350*300 18 1500W 0-900W 3000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-4048GH 28/40 optional 77L 550*400*350 24 3000W 0-1200W 3000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-4060GH 28/40 optional 99L 550*450*400 30 3000W 0-1500W 3000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-4061GH 28/40 optional 96L 800*300*400 30 3000W 0-1500W 3000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-4072GH 28/40 optional 135L 600*500*450 36 4500W 0-1800W 3000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-4096GH 28/40 optional 175L 700*500*500 48 6000W 0-2400W 3000W 1-99H adjustable 20-95°ºC Standard configuration
OLT-JM-4120GH 28/40 optional 264L 800*600*550 60 6000W 0-3000W 3000W 1-99H adjustable 20-95°ºC Standard configuration
OLT-JM-4144GH 28/40 optional 360L 1000*600*600 72 9000W 0-3600W 6000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-4168GH 28/40 optional 420L 1500*700*400 84 15000W 0-4200W 6000W 1-99H adjustable 20-95°ºC Standard configuration
OLT-JM-4192GH 28/40 optional 480L 1200*500*800 96 15000W 0-4800W 9000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-4216GH 28/40 optional 540L 1000*900*600 108 18000W 0-5400W 9000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-4240GH 28/40 optional 640L 1000*800*800 120 21000W 0-6000W 9000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-4264GH 28/40 optional 800L 1000*1000*800 132 24000W 0-6600W 12000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-4288GH 28/40 optional 960L 1200*1000*800 144 27000W 0-7200W 12000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-4432GH 28/40 optional 1500L 1500*1000*1000 216 27000W 0-10800W 21000W 1-99H adjustable 20-95ºC Standard configuration
* All models can be customized according to drawings and needs. Contact an engineer today to learn about the most suitable and cost-effective solution!
