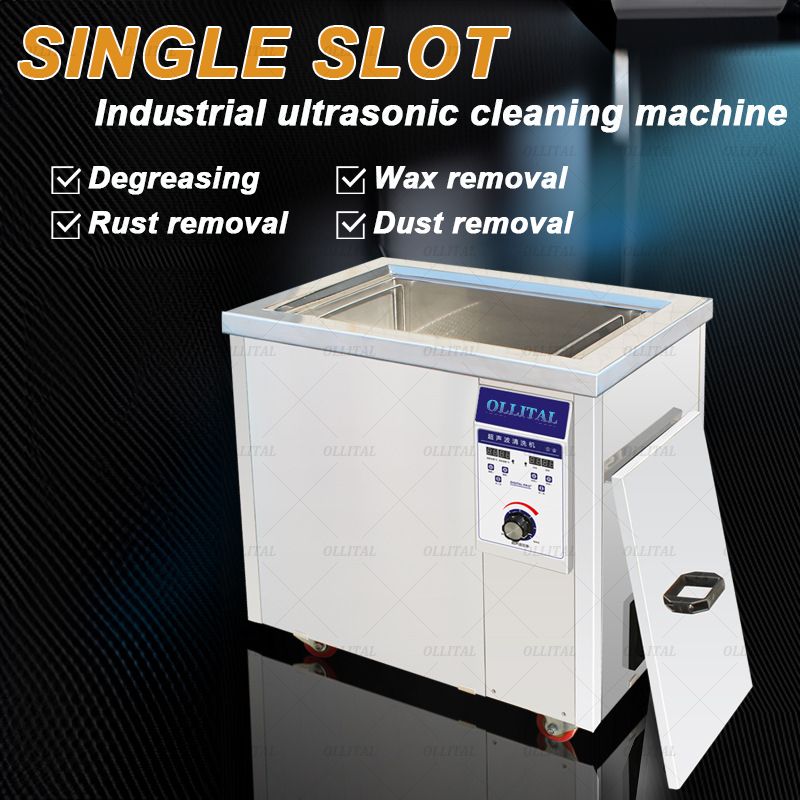

Single tank ultrasonic cleaning machine industrial cleaning equipment

Ultrasonic cleaning machine is a device that uses the cavitation effect produced by ultrasonic vibration to clean the surface and interior of an object.

  • Item NO.:

    JP-120ST

  • Lead Time:

    7-15 day

  • Product Orgin:

    China

  • Shipping Port:

    Xiamen

  • Voltage:

    220V or Customize

  • Power:

    0-1500W adjustable

  • Dimension(L*W*H):

    820*675*830MM

  • Weight:

    87KG
  • Product Details
Ultrasonic cleaning machine is a device that uses the cavitation effect generated by ultrasonic vibration to clean the surface and interior of an object. It can quickly remove impurities such as dirt, grease, oxides, etc. in the cleaning liquid through high-frequency ultrasonic vibration, thereby achieving a deep cleaning effect. This cleaning method is particularly suitable for cleaning objects with complex shapes and uneven surfaces, such as precision instruments, optical components, medical equipment, electronic products, etc.

Working principle

The core principle of the ultrasonic cleaning machine is to convert high-frequency electrical energy into ultrasonic energy through a transducer. When ultrasonic waves propagate in the cleaning liquid, dense pressure waves are generated. The pressure wave forms countless tiny bubbles in the liquid, which expand and burst rapidly under pressure, forming a strong impact force and a tiny jet flow. This process is called the cavitation effect, which can remove dirt from the surface of the object and disperse it in the cleaning liquid, thereby completing the cleaning task.

Equipment composition

  • Ultrasonic transducer: The core component that converts electrical energy into ultrasonic energy. Usually located at the bottom or side of the cleaning tank.
  • Cleaning tank: A container for cleaning liquid and items to be cleaned, usually made of corrosion-resistant materials such as stainless steel.
  • Generator: The power supply part that generates ultrasonic frequency, responsible for providing high-frequency current to the transducer.
  • Heating system (optional): Some ultrasonic cleaning machines are equipped with a heating function, which can increase the temperature of the cleaning liquid and enhance the cleaning effect.

Cleaning process
  • Preparation stage: Pour an appropriate amount of cleaning liquid into the cleaning tank to ensure that the liquid can completely cover the items to be cleaned.
  • Ultrasonic start: After the equipment is started, the transducer generates ultrasonic waves and propagates in the cleaning liquid, forming a cavitation effect.
  • Cleaning effect: Ultrasonic waves peel off the dirt on the surface of the object through the bursting and impact of bubbles in the liquid, and the cleaning liquid also dissolves and removes the dirt.
  • Rinse and dry: After cleaning, the object can be rinsed with clean water and then dried or dried with hot air.

model capacity Inner groove size (mm) ultrasonic power Ultrasonic frequency Power
JP-120ST 38L

500*300*250

600W 28/40KHZ 1500W
JP-180ST 53L 500*350*300 900W 28/40KHZ 1500W
JP-240ST 77L 550*400*350 1200W 28/40KHZ 3000W
JP-300ST 99L 550*450*400 1500W 28/40KHZ 4500W
JP-301 ST 96L 800*300*400 1500W 28/40KHZ 4500W
JP-360ST 135L 600*500*450 1800w 28/40KHZ 4500W
JP-480ST 175L 700*500*500 2400W 28/40KHZ 6000W
JP-600ST 264L 800*600*550 3000W 28/40KHZ 6000W
JP-720ST 360L 1000*600*600 3600W 28/40KHZ 9000W
JP-1108ST 540L 1000*900*600 5400W 28/40KHZ 18000W
JP-1144ST 960L 1200*1000*800 7200W 28/40KHZ 27000W
