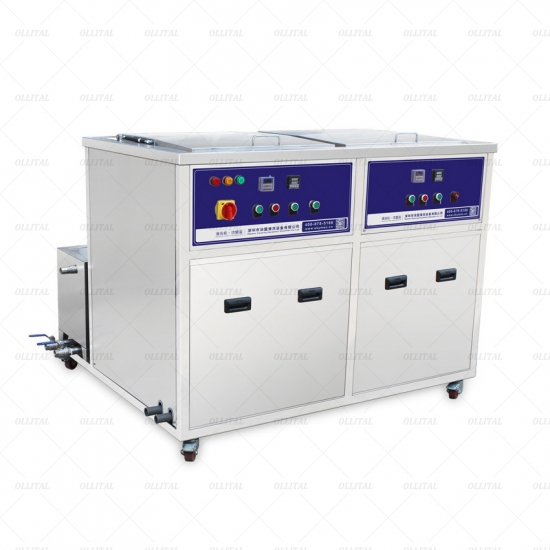

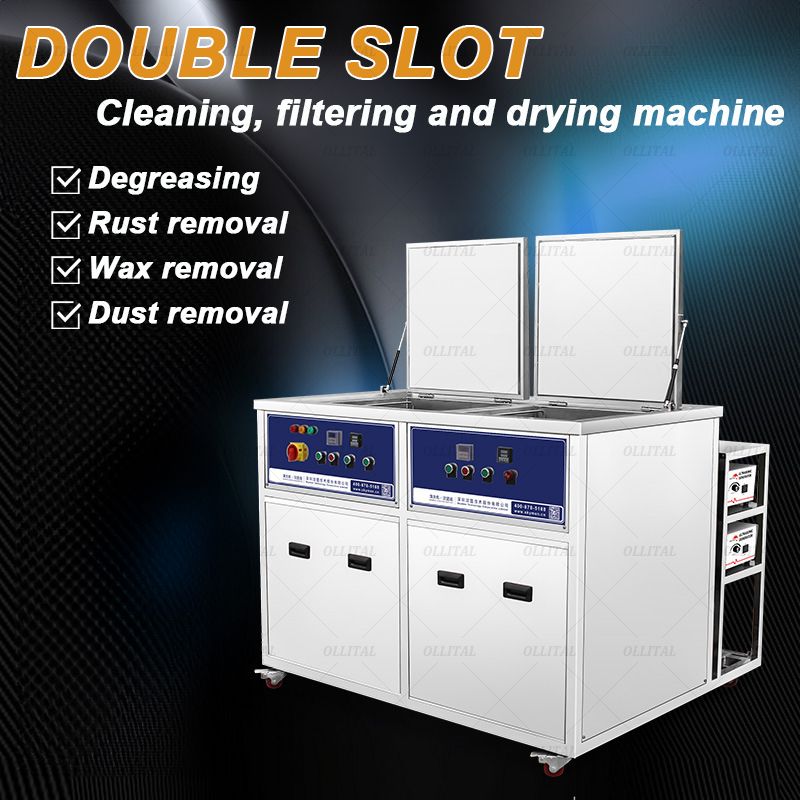

Double tank ultrasonic cleaning machine mechanical equipment

The double tank ultrasonic cleaning machine is a device that combines ultrasonic cleaning and drying functions in one.

  • Item NO.:

    OLT-JM-2012GH

  • Lead Time:

    7-15 day

  • Product Orgin:

    China

  • Shipping Port:

    Xiamen

  • Voltage:

    220V or Customize

  • Power:

    0-1500W adjustable

  • Dimension(L*W*H):

    1450*950*850

  • Weight:

    190KG
  • Product Details

The double tank ultrasonic cleaning machine is a device that combines ultrasonic cleaning and drying functions. It provides a more efficient cleaning and processing process through two independent tanks, one for cleaning and the other for drying. It is particularly suitable for precision parts and equipment that need to be dried quickly. This design allows objects to enter the drying step immediately after cleaning, reducing manual operations and improving production efficiency.

Working Principle

  1. Ultrasonic cleaning tank: Using ultrasonic cavitation effect, high-frequency vibration generates tiny bubbles, which quickly burst, generate strong impact force, and peel off dirt and residues on the surface of objects. Suitable for removing pollutants such as grease, dust, oxides, etc. on precision equipment.
  2. Drying tank: Quickly evaporate the moisture on the object through hot air or infrared heating to ensure that the object is quickly dried after cleaning to avoid secondary pollution or water stains on the surface.
Equipment composition
  • Ultrasonic cleaning tank: used for preliminary cleaning of objects, usually equipped with ultrasonic transducers and heating functions to improve the cleaning effect.
  • Drying tank: used for drying treatment, it may be equipped with a hot air circulation system or infrared heater inside to quickly evaporate the moisture on the surface of the object.
  • Control system: used to adjust parameters such as cleaning time, ultrasonic frequency, temperature, etc., and can also control the temperature and time of drying.
  • Filtration system (optional): The cleaning tank may be equipped with a filter to remove impurities in the cleaning liquid and maintain the cleanliness of the liquid.
Cleaning + drying process
  • Cleaning stage: The object to be cleaned is first placed in the ultrasonic cleaning tank, and the dirt on the surface of the object is removed by cavitation effect. The cleaning time and ultrasonic frequency can be adjusted according to the type of items being cleaned. The cleaning solution is usually a water-based solution or with the addition of a specific chemical cleaning agent.
  • Rinse (optional): Some double tank cleaning machines can also be equipped with a rinse tank so that the items can be rinsed with pure water or deionized water after cleaning to remove residual cleaning solution and dirt.
  • Drying stage: After the items are cleaned, they are automatically or manually moved to the drying tank and quickly dried by hot air or infrared to ensure that there is no residual moisture on the surface.


Model Frequency(KHz) Capacity Inner groove size mm Number of vibrators Heating power Ultrasonic power Drying and heating Time control Temperature control Filter cycle
OLT-JM-2012GH 28/40 optional 38L 500*300*250 12 1500W 0-600W 3000W 1-99H adjustable 20-95°ºC Standard configuration
OLT-JM-2018GH 28/40 optional 53L 500*350*300 18 1500W 0-900W 3000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-2024GH 28/40 optional 77L 550*400*350 24 3000W 0-1200W 3000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-2030GH 28/40 optional 99L 550*450*400 30 3000W 0-1500W 3000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-2031GH 28/40 optional 96L 800*300*400 30 3000W 0-1500W 3000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-2036GH 28/40 optional 135L 600*500*450 36 4500W 0-1800W 3000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-2048GH 28/40 optional 175L 700*500*500 48 6000W 0-2400W 3000W 1-99H adjustable 20-95°ºC Standard configuration
OLT-JM-2060GH 28/40 optional 264L 800*600*550 60 6000W 0-3000W 3000W 1-99H adjustable 20-95°ºC Standard configuration
OLT-JM-2072GH 28/40 optional 360L 1000*600*600 72 9000W 0-3600W 6000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-2084GH 28/40 optional 420L 1500*700*400 84 15000W 0-4200W 6000W 1-99H adjustable 20-95°ºC Standard configuration
OLT-JM-2096GH 28/40 optional 480L 1200*500*800 96 15000W 0-4800W 9000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-2108GH 28/40 optional 540L 1000*900*600 108 18000W 0-5400W 9000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-2120GH 28/40 optional 640L 1000*800*800 120 21000W 0-6000W 9000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-2132GH 28/40 optional 800L 1000*1000*800 132 24000W 0-6600W 12000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-2144GH 28/40 optional 960L 1200*1000*800 144 27000W 0-7200W 12000W 1-99H adjustable 20-95ºC Standard configuration
OLT-JM-2216GH 28/40 optional 1500L 1500*1000*1000 216 27000W 0-10800W 21000W 1-99H adjustable 20-95ºC Standard configuration
* All models can be customized according to drawings and needs. Contact an engineer today to learn about the most suitable and cost-effective solution!
