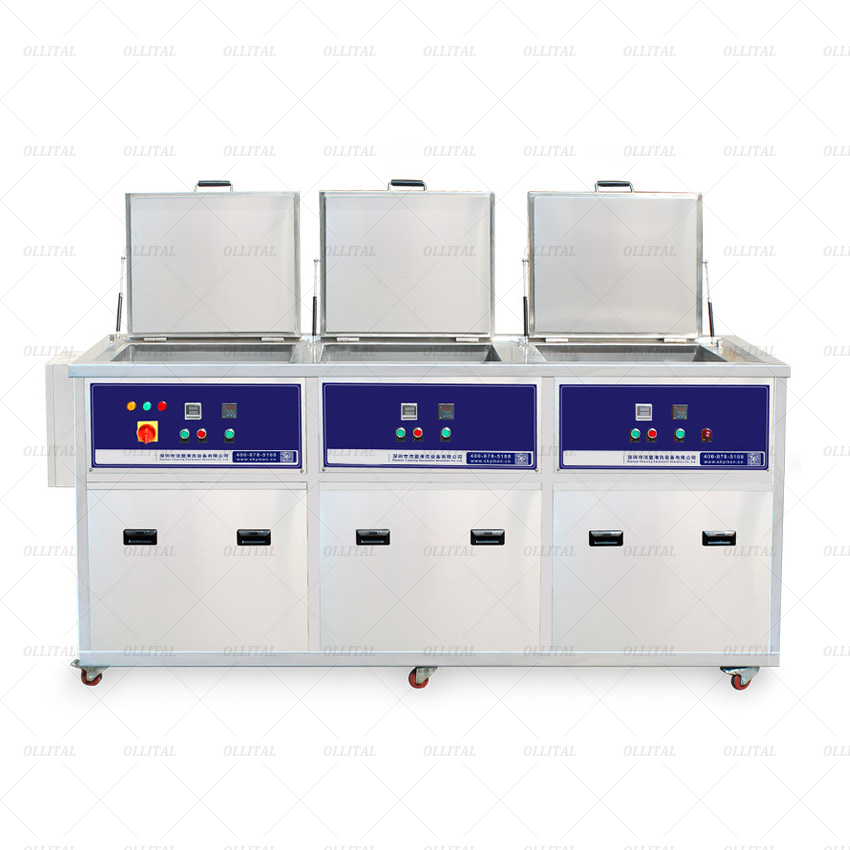

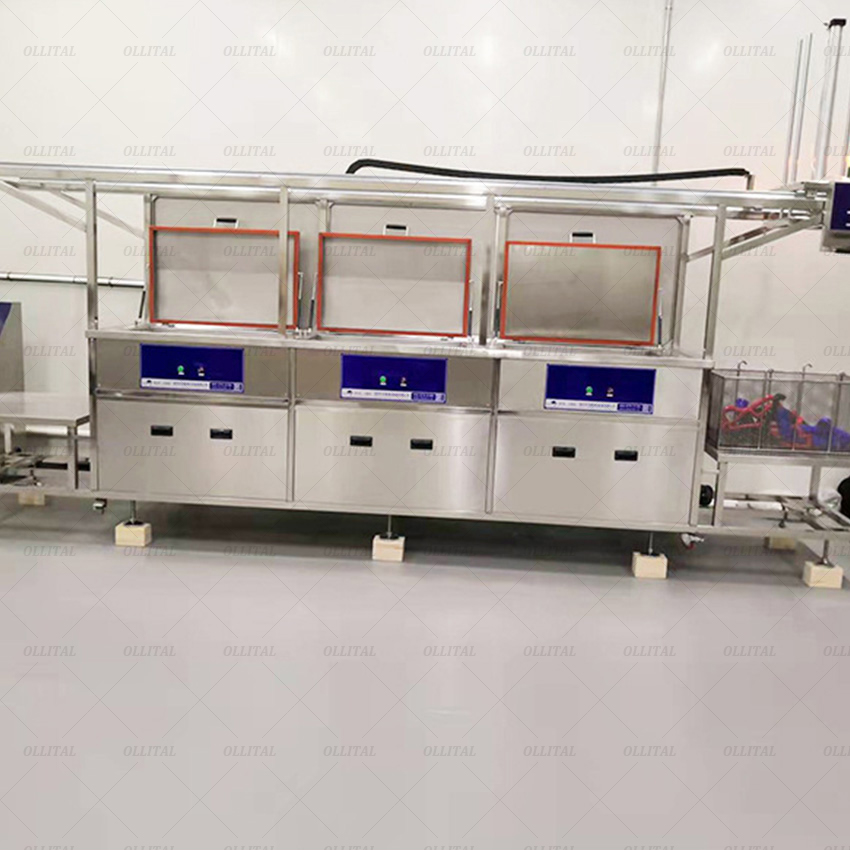

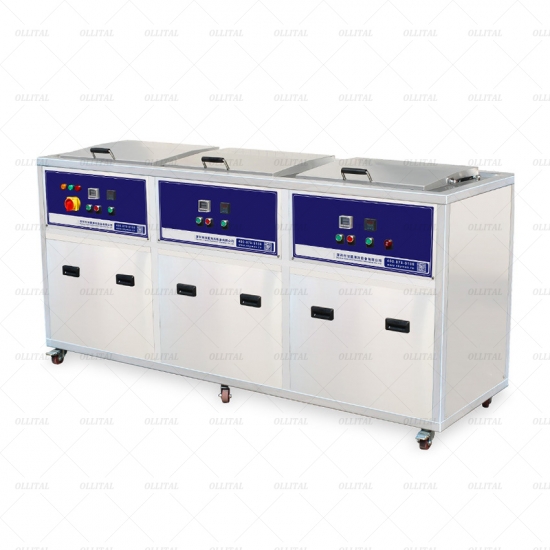

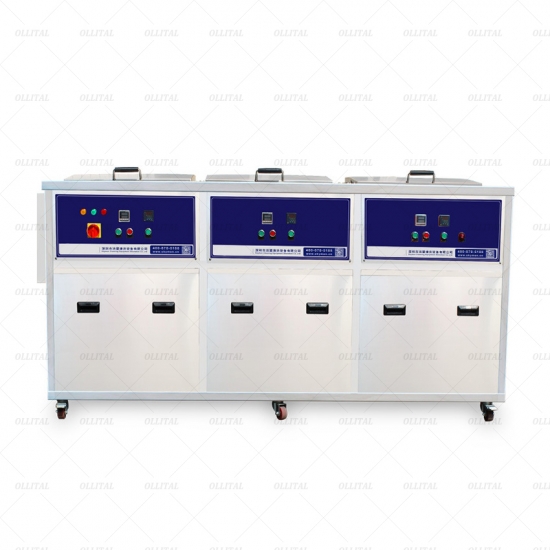

Three-Station Engine Block Ultrasonic Cleaning Machine

The three-station ultrasonic cleaning machine is a multi-station ultrasonic cleaning equipment that integrates cleaning, rinsing and drying functions. The equipment is designed with three independent stations or tanks, which are used for ultrasonic cleaning, pure water or deionized water rinsing and drying of objects. This design greatly improves the cleaning efficiency and is suitable for applications in industries such as precision instruments and electronic components that have high cleaning requirements and require fast drying.

Working principle

1. Ultrasonic cleaning tank: The first station uses the ultrasonic cavitation effect to generate countless tiny bubbles in the cleaning liquid through high-frequency vibration. These bubbles generate impact force when they burst, removing dirt and grease on the surface of the object.
2. Rinsing tank: The second station is used for rinsing, and pure water or deionized water is often used to further remove residual cleaning liquid or pollutants to ensure that there are no chemical residues on the surface of the object.
3. Drying tank: The third station uses hot air or infrared heating to quickly evaporate the water after rinsing to ensure that the object is dry and free of water stains or residual liquid.

• Cleaning tank: Used for the initial cleaning of objects, using ultrasonic technology and equipped with a heating function to improve the cleaning effect.
• Rinsing tank: Mainly used for rinsing objects, often equipped with a deionized water circulation system to ensure the purity of the rinsing water.
• Drying tank: Used for drying objects, usually using hot air or infrared heating to accelerate water evaporation and prevent water stains from remaining.
• Solution filtration system: Some equipment is equipped with a filtration circulation system for cleaning liquid or rinsing water to extend the service life of the liquid.
• Control system: used to adjust the time, temperature and ultrasonic frequency of washing, rinsing and drying.

Three-station cleaning process

• Cleaning stage: The object is first placed in the ultrasonic cleaning tank to remove surface dirt through cavitation effect. The cleaning time, temperature and ultrasonic frequency can be adjusted according to the cleaning needs of different objects.
• Rinsing stage: The cleaned object is moved to the rinsing tank and rinsed thoroughly with pure water or deionized water to remove the residue of the cleaning liquid and ensure that the surface is clean and pollution-free.
• Drying stage: The rinsed object is moved to the drying tank and hot air or infrared heating technology is used to quickly dry the moisture on the surface of the object to ensure that there are no water stains or marks on the object after cleaning.

Application field

1. Electronic industry: Suitable for cleaning and drying circuit boards, semiconductor components and other precision electronic equipment. The rinsing stage can completely remove the cleaning agent to avoid affecting the electronic components.
2. Medical industry: Cleaning and drying surgical tools, medical equipment, etc., sterile cleaning and quick drying of instruments to ensure safe use.
3. Precision machinery industry: Used for cleaning and drying various precision machinery parts. Rinsing and drying ensure that there is no residual liquid on the surface of the object and ensure the surface cleanliness of high-precision products.
